| Fig. 1: |
Sampling sites
[Bit Map File]
|
| |
|
| Fig. 2: |

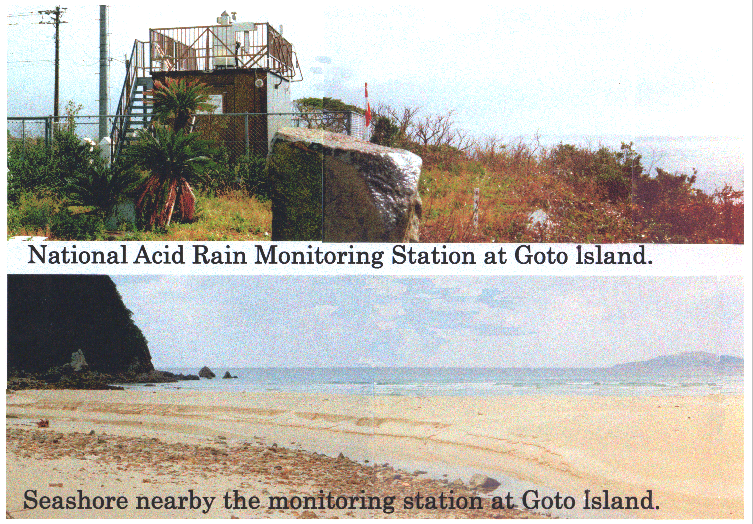

National Acid Rain Monitoring Station at Goto
Island
[Bit Map File]
|
| |
|
| Fig. 3: |

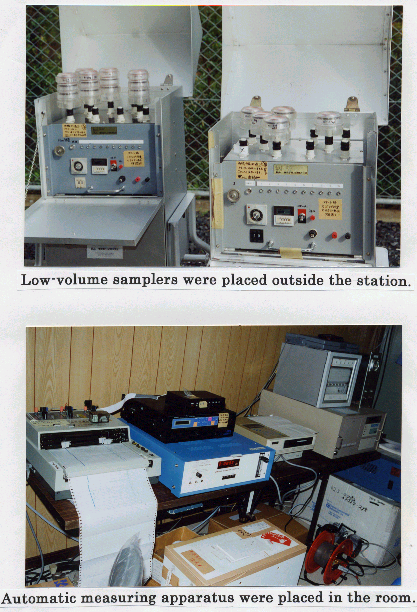

Low volume samplers and instruments to monitor
gaseous pollutants
[Bit Map File]
|
| |
|

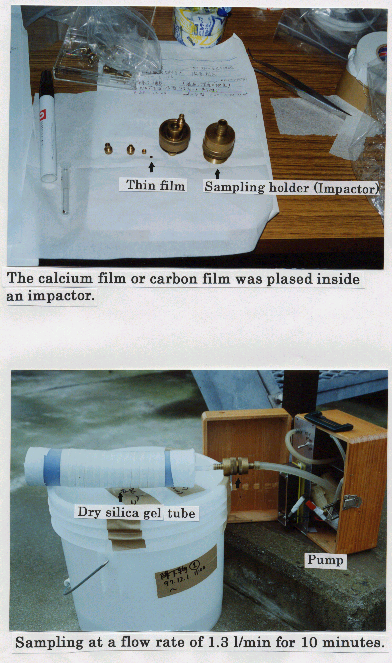

| Fig. 4: |
Set up of an impactor
[Bit
Map File] |
| |
|

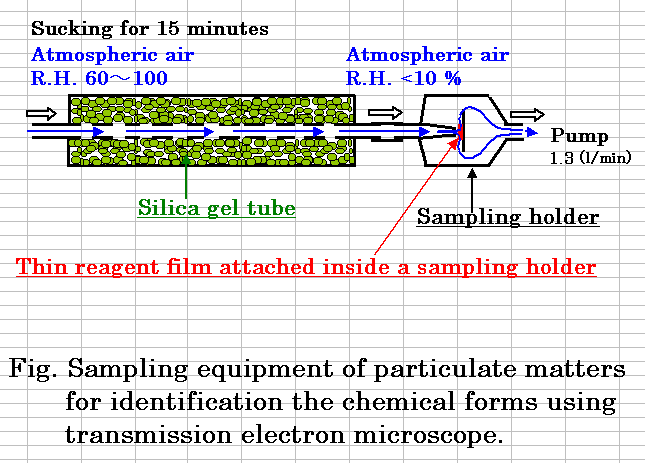

| Fig. 5: |
Sampling equipment of
particulate matters for identification the chemical forms using
transmission electron microscope
[Bit
Map File]
|
| |
|
|

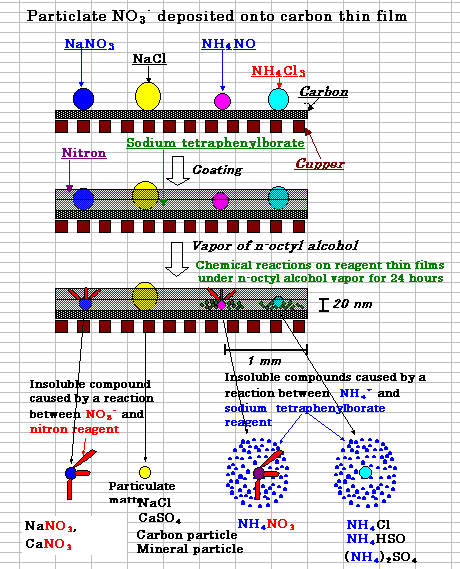

Fig. 6:
|
Particulate NO3 deposited
onto Carbon thin films
[Bit
Map File] |
| |
|

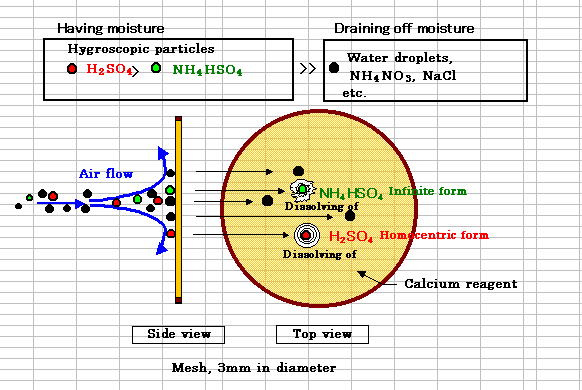

| Fig. 7: |
Distinction of particulate NH4HSO4
and H2SO4.
[Bit
Map File] |
| |
|

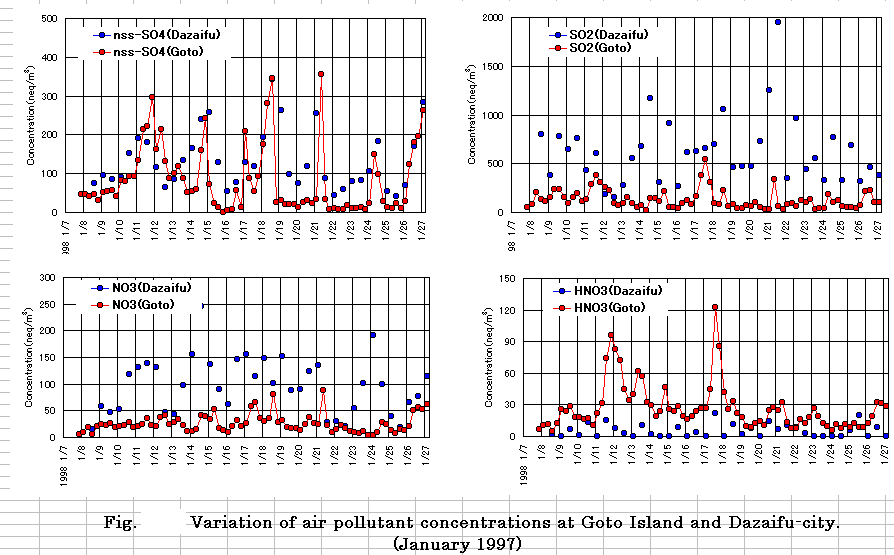

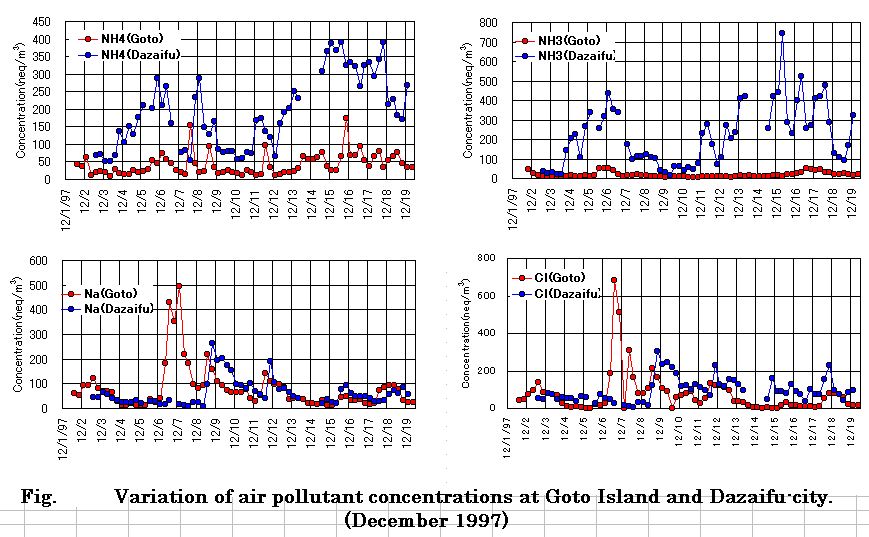

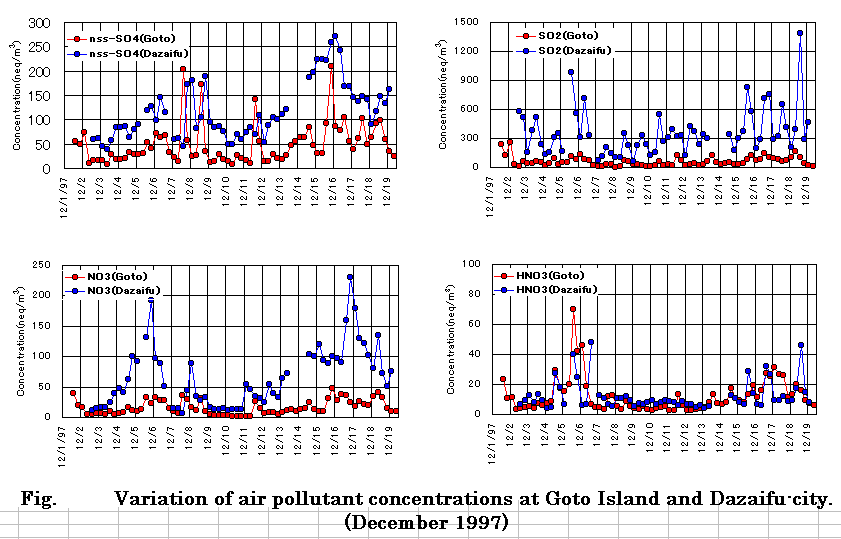

| Fig. 8(1): |
Variation of air pollutant concentrations at
Goto Island and Dazaifu-city(Jan. 1997)
[Bit
Map File] |
| |
|

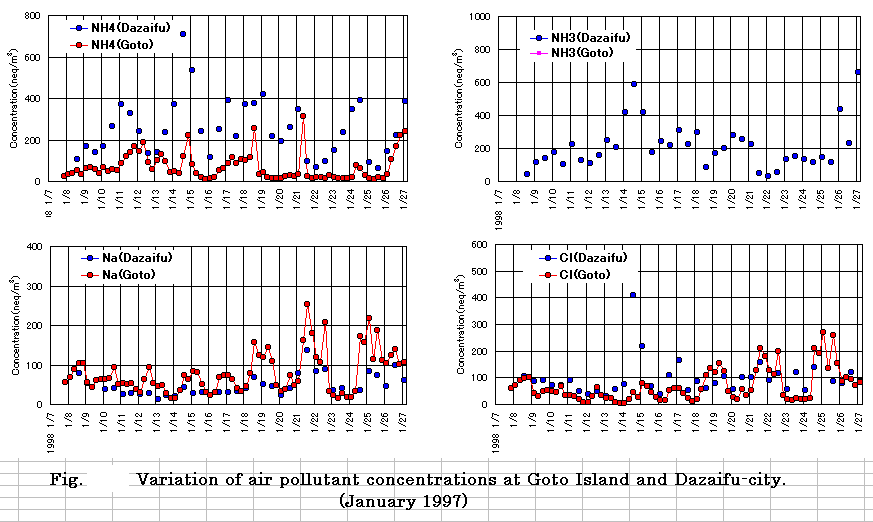

| Fig. 8(2): |
Variation of air pollutant concentrations at
Goto Island and Dazaifu-city(Jan. 1997)
[Bit
Map File] |
| |
|

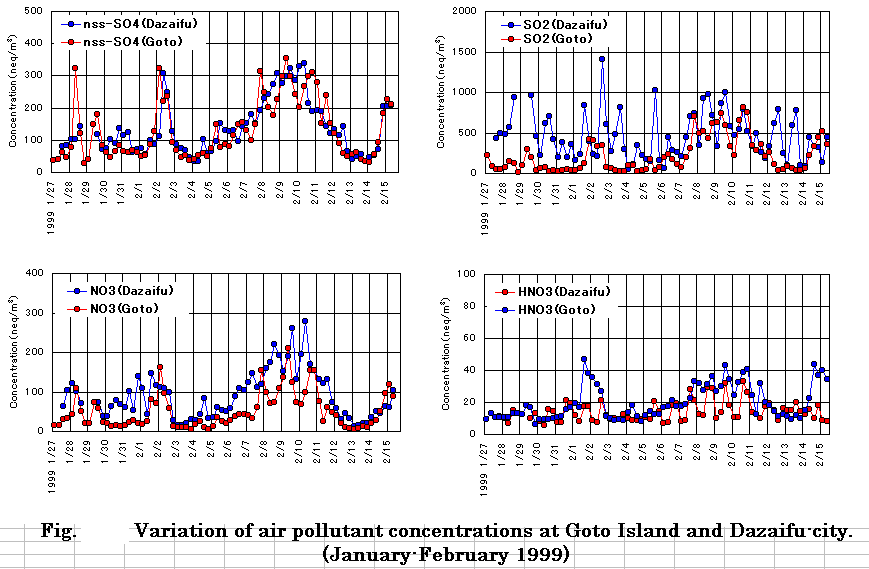

| Fig.9(1): |
Variation of air pollutant concentrations at
Goto Island and Dazaifu-city(Jan. 1997)
[Bit
Map File]
|
| |
|
| Fig.9(2): |
Variation of air pollutant concentrations at
Goto Island and Dazaifu-city(Jan. 1997)
[Bit
Map File] |
| |
|

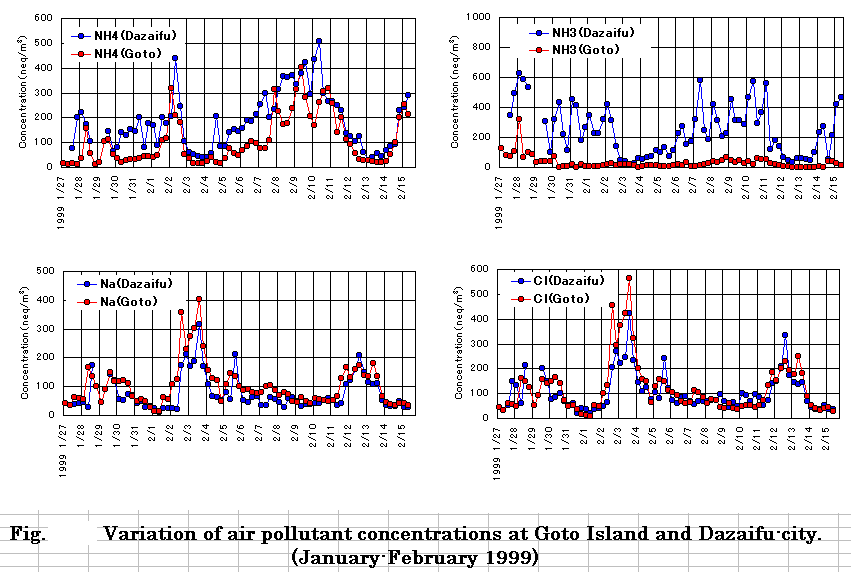

| Fig.10(1): |
Variation of air pollutant concentrations at
Goto Island and Dazaifu-city(Jan. 1997)
[Bit
Map File] |
| |
|
| Fig.10(2): |
Variation of air pollutant concentrations at
Goto Island and Dazaifu-city(Jan. 1997)
[Bit
Map File] |
| |
|

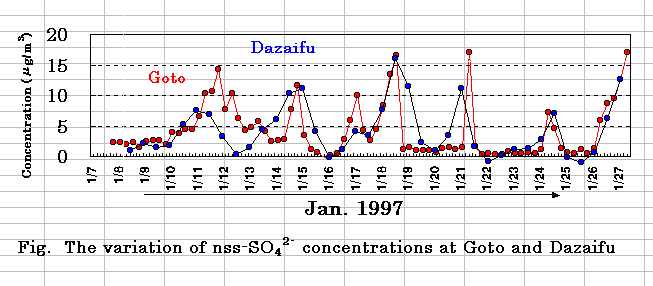

| Fig.11: |
The variations of nss-SO42-
concentrations at Goto Island and Dazaifu-city(Jan. 1997)
[Bit
Map File] |
| |
|

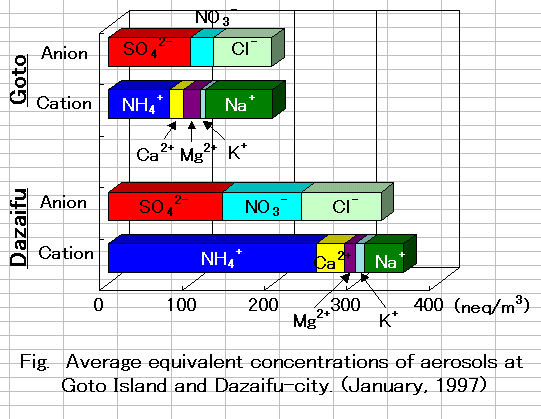

| Fig.12: |
Average equivalent concentrations of aerosols
at Goto Island and Dazaifu-city(Jan. 1997)
[Bit
Map File] |
| |
|

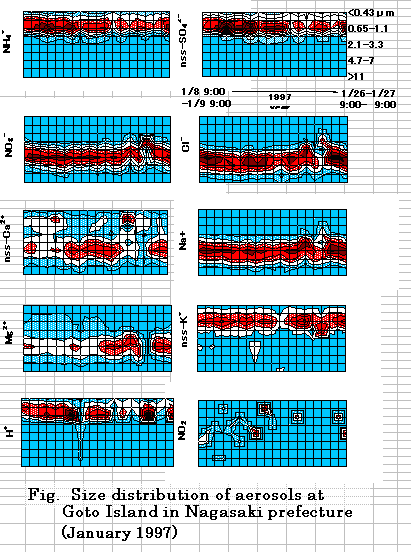

| Fig.13:
|
Size distributions of aerosols at Goto Island
in Nagasaki prefecture(Jan. 1997)
[Bit
Map File] |
| |
|
|

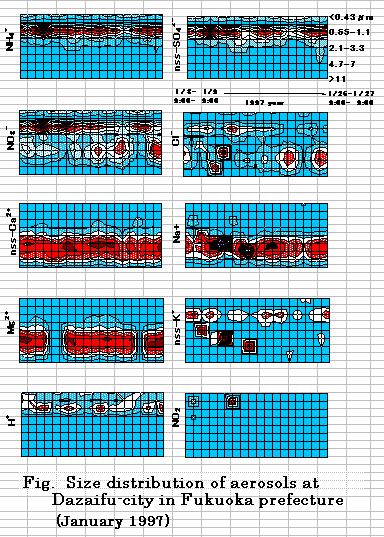

Fig.14:
|
Size distributions of aerosols at Dazaifu-city
in Fukuoka prefecture(Jan. 1997)
[Bit
Map File] |
| |
|

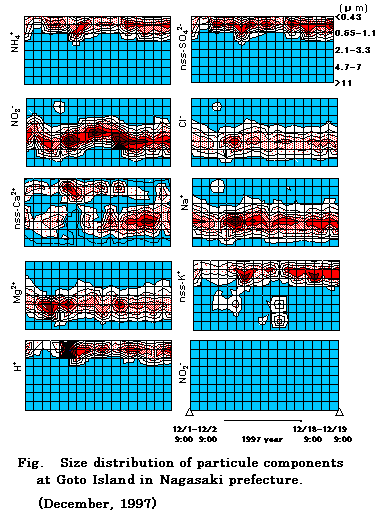

| Fig.15: |
Size distributions of particulate components
at Goto Island in Nagasaki prefecture(Dec. 1997)
[Bit
Map File] |
| |
|

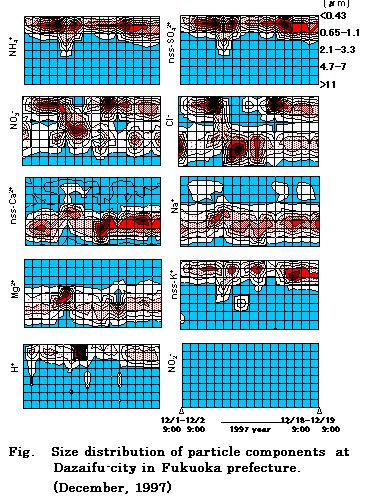

| Fig.16: |
Size distributions of particulate components
at Dazaifu-city in Fukuoka prefecture(Dec. 1997)
[Bit
Map File] |
| |
|

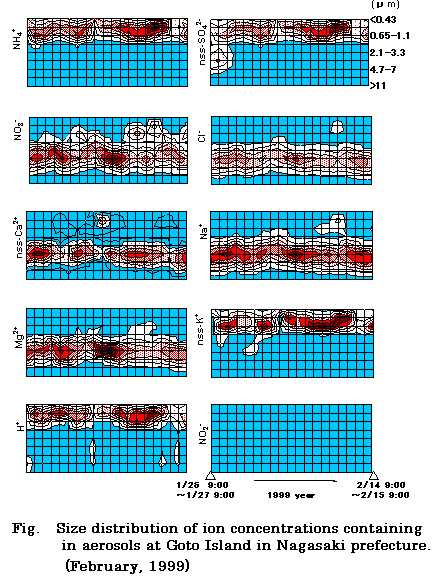

| Fig.17: |
Size distributions of ion concentrations containing
in aerosols at Goto Island in Nagasaki prefecture(Feb. 1999)
[Bit
Map File] |
| |
|
| Fig.18: |

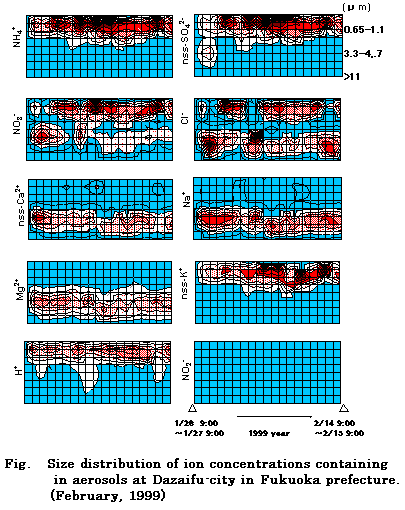

Size distributions of ion concentrations containing
in aerosols at Dazaifu-city in Fukuoka prefecture(Feb. 1999)
[Bit
Map File] |
| |
|

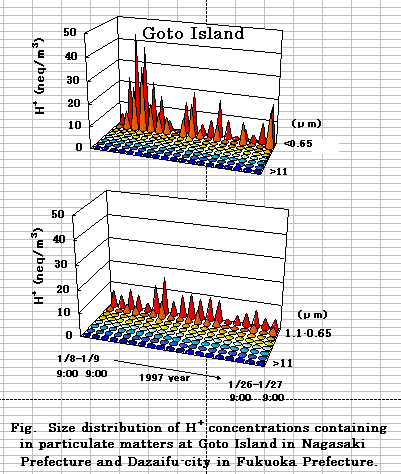

| Fig.19: |
Size distribution of H+ concentrations containing
in the particulate matters at Goto Island in Nagasaki prefecture
and Dazaifu-city in Fukuoka prefecture
[Bit
Map File] |
| |
|

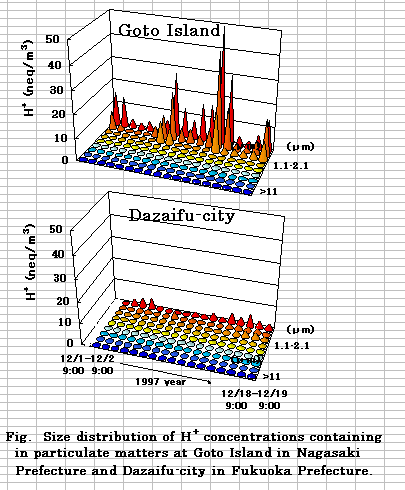

| Fig.20: |
Size distribution of H+ concentrations containing
in the particulate matters at Goto Island in Nagasaki prefecture
and Dazaifu-city in Fukuoka prefecture
[Bit
Map File] |
| |
|

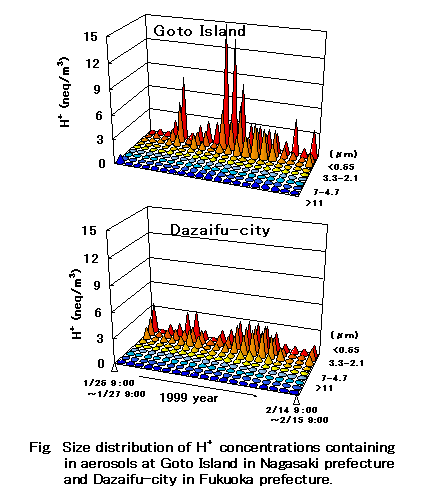

| Fig.21: |
Size distribution of H+ concentrations containing
in aerosols at Goto Island in Nagasaki prefecture and Dazaifu-city
in Fukuoka prefecture
[Bit
Map File] |
| |
|
| Fig.22: |
Transmission electron microphotographs of particulate
matter corrected on Nt-Tet thin film(Dec. 1997)
[Bit
Map File] |
| |
|

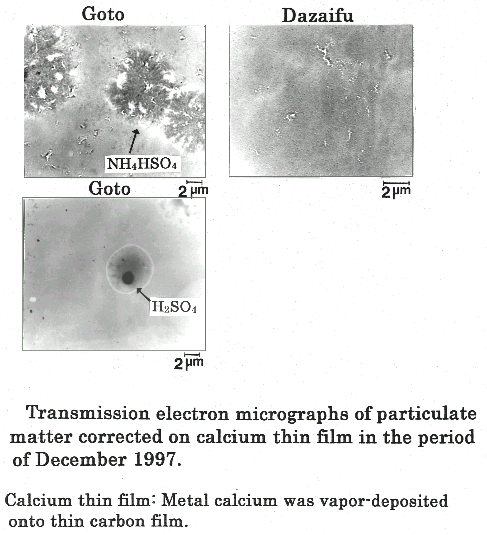

| Fig.23: |
Transmission electron microphotographs of particulate
matter corrected on calucium thin film(Dec. 1997)
[Bit
Map File] |
| |
|

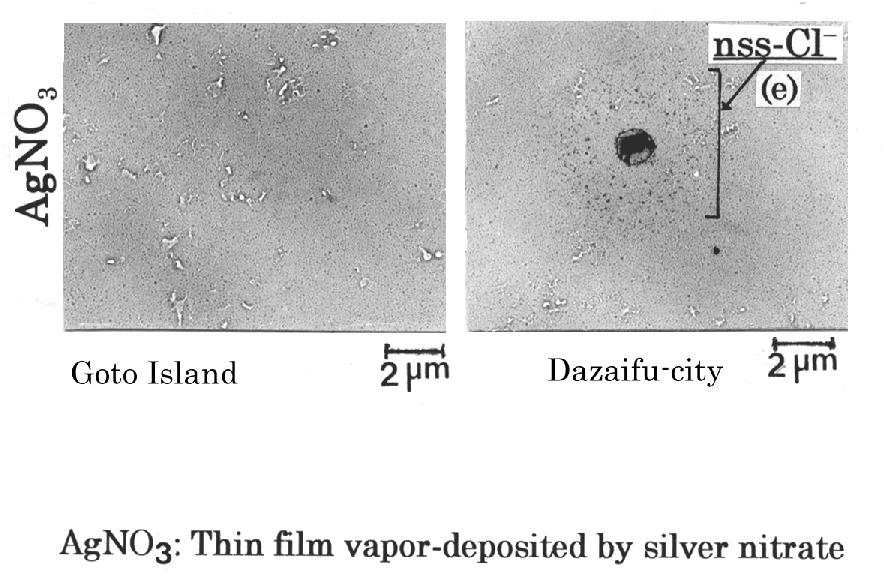

| Fig.24: |
The characteristic spots of AgCl formed by the
reaction between nss-Cl- and AgNO3 (Dec. 1997)
[Bit
Map File] |
